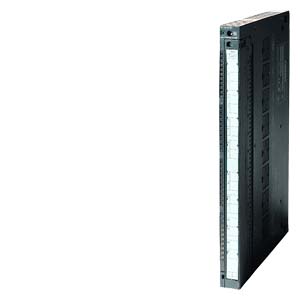

SIEMENS 6ES7431-1KF20-0AB0 S7-400 Analog Module with 8 Channels

The SIEMENS 6ES7431-1KF20-0AB0 is an S7-400 analog input module featuring eight channels for high-precision signal acquisition in industrial automation. This module facilitates the conversion of real-world analog signals into digital data for processing by the S7-400 programmable logic controller. Its robust design ensures reliable operation within demanding industrial environments.

Product Type Definition

This device functions as an analog input module within the Siemens SIMATIC S7-400 programmable logic controller family. It is engineered for applications requiring precise measurement and monitoring of continuous process variables. The module is positioned as a critical component for complex automation tasks demanding high channel density and accuracy.

Key Specifications

Analog inputs: 8

Resolution: 16 bits

Input type: Voltage, Current

Input range (Voltage): ±10 V, 0 to 10 V, 1 to 5 V

Input range (Current): 0 to 20 mA, 4 to 20 mA

Galvanic isolation: Yes, channel-to-backplane, between channels

Permissible ambient temperature: 0 to 60 °C

Dimensions (W x H x D): 80 x 290 x 217 mm

Power consumption: 200 mA at 5 V DC

Technical Highlights & System Integration

High-Resolution Conversion: The 16-bit analog-to-digital converter provides a resolution of 32,767 steps, enabling the detection of minute changes in analog signals. This precision is essential for advanced process control loops and detailed data logging.

System Compatibility: Designed for seamless integration with the Siemens SIMATIC S7-400 PLC system, the module utilizes the standard S7-400 backplane bus for communication. This ensures straightforward hardware configuration and software parameterization within the STEP 7 engineering environment.

Diagnostic Capabilities: The module offers comprehensive diagnostics, reporting module errors, wire break detection, and input range violations. These features enhance system reliability and facilitate rapid troubleshooting, minimizing downtime.

Signal Conditioning: It supports configurable input ranges for both voltage and current signals, allowing adaptation to various sensor types and process requirements. How are different input types configured. Input types and ranges are selectable via software parameterization in STEP 7, offering flexibility for diverse applications.

Isolation Protection: The module provides galvanic isolation between channels and from the backplane, protecting the PLC and connected devices from ground loops and electrical interference. This enhances operational safety and data integrity in electrically noisy environments.

Key Application Scenarios

Process Monitoring: Enables continuous, high-accuracy monitoring of critical process variables like temperature, pressure, and flow rates, leading to improved process stability and product quality.

Automated Manufacturing: Facilitates precise control of actuators and data acquisition from sensors in complex assembly lines, optimizing production efficiency and throughput.

Data Acquisition Systems: Serves as a foundational element for industrial data logging and analysis, providing the raw analog data necessary for performance trending and optimization studies.

Environmental Control: Supports the precise measurement of environmental parameters within facilities, ensuring optimal operating conditions and compliance with safety regulations.

Selection Guidance & Operation

Module Selection: Choose this module when precise measurement of eight analog input signals (voltage or current) is required within an S7-400 system. Verify that the input signal types and ranges are compatible with your sensors.

Installation: Install the module into an available slot on the S7-400 PLC rack. Ensure proper connection to the backplane and secure wiring of the input signals according to the wiring diagrams.

Configuration: Parameterize the module using the STEP 7 software, defining input ranges, signal filtering, and diagnostic settings appropriate for the specific application. Accurate configuration is critical for optimal performance.

Operation and Maintenance: Monitor the module's diagnostic status indicators and error messages within the PLC. Regular inspection of wiring connections and adherence to operating temperature limits will ensure longevity.

FAQ

What are the supported input signal types for the SIEMENS 6ES7431-1KF20-0AB0?

The module supports both voltage and current input signals, offering significant flexibility. Supported voltage ranges include ±10 V, 0 to 10 V, and 1 to 5 V. Supported current ranges are 0 to 20 mA and 4 to 20 mA.

What is the accuracy and resolution of this analog input module?

This analog module provides a high resolution of 16 bits, translating to 32,767 digital steps. This high resolution ensures very precise measurement of analog input signals for critical process control.

How does the galvanic isolation benefit system integration?

Galvanic isolation separates electrical circuits, preventing common-mode voltage issues and ground loops. This feature protects the PLC and connected field devices from potential electrical interference and damage.

What are the environmental operating limits for this module?

The module is designed to operate reliably within a permissible ambient temperature range of 0 to 60 degrees Celsius. It is essential to maintain these environmental conditions for optimal performance and longevity.

What diagnostic information can be obtained from this module?

The module provides comprehensive diagnostics, including status of individual channels and the module itself. It can report errors such as module faults, wire breaks, and out-of-range input signals for troubleshooting.
