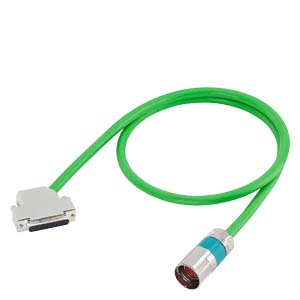

SIEMENS 6FX8002-2CG00-1CF0 Encoder Signal Cable for Servo Systems

The SIEMENS 6FX8002-2CG00-1CF0 encoder signal cable is a critical component designed to ensure reliable data transmission between servo drives and encoders in demanding industrial automation environments. This high-performance cable offers superior signal integrity, robust mechanical resilience, and seamless integration with SIEMENS SINAMICS and SIMODRIVE systems. Its key advantages include exceptional noise immunity, flexibility for complex routing, and durability for extended operational life. Technical parameters such as its specific connector types, cable length, and shielding effectiveness are paramount for optimal system performance and stability.

SIEMENS 6FX8002-2CG00-1CF0 Product Specifications

| Feature                | Specification                                       |

| :--------------------- | :-------------------------------------------------- |

| Product Type           | Encoder Signal Cable                                |

| Manufacturer           | SIEMENS                                             |

| Part Number            | 6FX8002-2CG00-1CF0                                  |

| Cable Length           | 20 meters                                           |

| Connector Type (Drive) | DRIVE-CLiQ                                          |

| Connector Type (Encoder)| DRIVE-CLiQ                                          |

| Shielding              | Yes, highly effective                               |

| Cable Flexibility      | High                                                |

| Temperature Range      | -20°C to +70°C (typical operating)                  |

| Voltage Rating         | Varies based on system; designed for servo signals |

| Certifications         | UL, CSA (typical for industrial applications)       |

Core Features & Market Positioning

The SIEMENS 6FX8002-2CG00-1CF0 distinguishes itself through its proprietary DRIVE-CLiQ interface, a digital, plug-and-play connection system that simplifies encoder integration and enhances data security in servo applications. This feature significantly reduces wiring complexity and potential error sources compared to traditional analog encoder connections. Its robust construction, featuring high-quality shielding and durable jacketing, positions it as a premium solution for environments prone to electromagnetic interference (EMI) and mechanical stress. This cable is engineered to meet the stringent demands of high-precision motion control, making it a preferred choice for industries requiring absolute reliability, such as automotive manufacturing, packaging, and semiconductor production. The integration with SIEMENS' established automation platforms like SINAMICS ensures seamless compatibility and optimized performance within a broader system architecture.

Key Application Scenarios

This encoder signal cable is indispensable in servo systems where precise feedback is critical for closed-loop control. Its primary application lies in connecting SIEMENS servo drives (e.g., SINAMICS S120) with digital encoders that utilize the DRIVE-CLiQ protocol. This includes scenarios such as high-speed pick-and-place machines in the electronics industry, robotic arms requiring exact trajectory following in assembly lines, and precision winding or unwinding systems in textile or paper manufacturing. The cable's resilience also makes it suitable for mobile applications, like those found on automated guided vehicles (AGVs) or on machines with continuous motion where cable flexibility and resistance to fatigue are paramount. Furthermore, its use is vital in automated machine tools where precise positioning is essential for quality and throughput.

Practical System Integration Guidance

Integrating the SIEMENS 6FX8002-2CG00-1CF0 cable into a servo system is designed for simplicity due to the DRIVE-CLiQ interface. The connectors are keyed and robust, ensuring correct polarity and secure mating. When installing, route the cable away from high-power lines or sources of strong electromagnetic fields to maintain signal integrity. Ensure the cable is adequately supported and not subjected to excessive bending radius, especially in dynamic applications. The cable connects directly between the encoder and the designated DRIVE-CLiQ port on the SIEMENS servo drive or motor module. No specific programming is typically required for the cable itself; rather, the drive automatically detects the connected encoder and its parameters via the DRIVE-CLiQ communication.

Operation and Risk Mitigation

Proper operation of the 6FX8002-2CG00-1CF0 cable relies on maintaining the integrity of its connections and physical state. Operators should be aware that physical damage, such as cuts or crushed sections, can lead to intermittent signal loss or complete failure, resulting in machine downtime and potential safety hazards if unexpected motion occurs. Regular visual inspections of the cable and its connectors are recommended, particularly in harsh environments. While the cable is designed for resilience, extreme temperatures outside its specified range or exposure to corrosive chemicals can degrade its performance. Troubleshooting typically involves verifying secure connections at both ends and ensuring the cable is not damaged. Fault codes generated by the drive often indicate an encoder communication issue, which could stem from a faulty cable.

Scalability & Long-Term Value

The SIEMENS 6FX8002-2CG00-1CF0 encoder signal cable offers excellent long-term value by ensuring compatibility with SIEMENS' extensive range of SINAMICS and SIMODRIVE servo systems. This standardized DRIVE-CLiQ interface allows for easy upgrades or replacements of encoders and drives without necessitating a complete overhaul of the cabling infrastructure, provided the new components also support the DRIVE-CLiQ protocol. Its robust design contributes to a longer service life, reducing the total cost of ownership. Furthermore, the digital nature of the DRIVE-CLiQ communication protocol is future-proof, aligning with the industry's trend towards increased data exchange and integration with Industrial Internet of Things (IIoT) platforms, enabling more advanced diagnostics and predictive maintenance strategies.

Frequently Asked Questions

What is the primary function of the SIEMENS 6FX8002-2CG00-1CF0 cable?

This cable transmits precise position and speed data from encoders to servo drives. It ensures reliable communication for accurate motion control.

Its main purpose is to facilitate the DRIVE-CLiQ digital interface. This protocol offers enhanced noise immunity and plug-and-play functionality.

The cable is crucial for closed-loop control systems, enabling real-time feedback for optimal servo performance and system stability.

What type of connectors does the SIEMENS 6FX8002-2CG00-1CF0 cable use?

It features DRIVE-CLiQ connectors on both ends. These are specific to SIEMENS servo drives and encoders.

The connectors are designed for secure, keyed mating, preventing incorrect installation. This ensures proper signal transmission.

DRIVE-CLiQ connectors simplify wiring and reduce potential connection errors compared to older analog systems.

Can this cable be used with non-SIEMENS servo drives or encoders?

Generally, no. The 6FX8002-2CG00-1CF0 is designed exclusively for SIEMENS systems using the DRIVE-CLiQ interface.

Using it with incompatible hardware may result in system failure or damage. It requires specific protocol support.

For other brands, alternative cables with corresponding connectors and protocols would be necessary.

What is the maximum operating temperature for this cable?

The typical operating temperature range is -20°C to +70°C. This allows for use in many industrial environments.

Exceeding this range can degrade the cable's insulation and performance over time. Always check the specific datasheet.

Ensure proper ventilation around the cable and connected components, especially in enclosed control cabinets.

How does shielding on this cable benefit my servo system?

Shielding protects the encoder signals from external electromagnetic interference (EMI). This is vital in noisy industrial settings.

Effective shielding ensures signal integrity and prevents data corruption, leading to more accurate motor control.

It helps maintain consistent performance and reduces the risk of random errors or system malfunctions caused by electrical noise.

What is the length of the SIEMENS 6FX8002-2CG00-1CF0 cable?

This specific model, 6FX8002-2CG00-1CF0, is 20 meters long. Longer or shorter options may be available.

It's important to select a cable length that avoids excessive slack but also does not create tension. Proper routing is key.

Consider the total distance required for your application to ensure signal quality is maintained over the entire run.

Is this cable suitable for highly dynamic or continuous motion applications?

Yes, the cable is designed for high flexibility and mechanical resilience. This makes it suitable for moving applications.

Its construction helps withstand repeated bending and flexing without compromising signal integrity. Always adhere to bend radius guidelines.

Ensure the cable is properly managed with cable carriers or appropriate strain relief to maximize its lifespan in dynamic use.

What troubleshooting steps should I take if I experience encoder communication errors?

First, visually inspect the cable and connectors for any signs of damage or loose connections. Ensure they are securely plugged in.

Check the drive's diagnostic logs for specific fault codes related to encoder communication. Refer to the drive manual for interpretation.

If the cable appears intact, test with a known good cable or an alternative encoder to isolate the issue.

How does the DRIVE-CLiQ interface simplify integration?

DRIVE-CLiQ is a digital, plug-and-play system. It automatically configures encoder parameters upon connection.

This eliminates complex manual configuration steps and reduces the likelihood of wiring errors. It streamlines commissioning.

The protocol also supports higher data transfer rates and diagnostics compared to older analog encoder interfaces.

What is the long-term value proposition of using this specific cable?

Its compatibility with SIEMENS SINAMICS and SIMODRIVE platforms ensures future scalability and upgradeability. This reduces long-term costs.

The robust construction offers extended operational life, minimizing downtime and replacement expenses. It provides reliability.

The digital DRIVE-CLiQ interface aligns with Industry 4.0 trends, facilitating integration with IIoT and advanced diagnostic systems.
